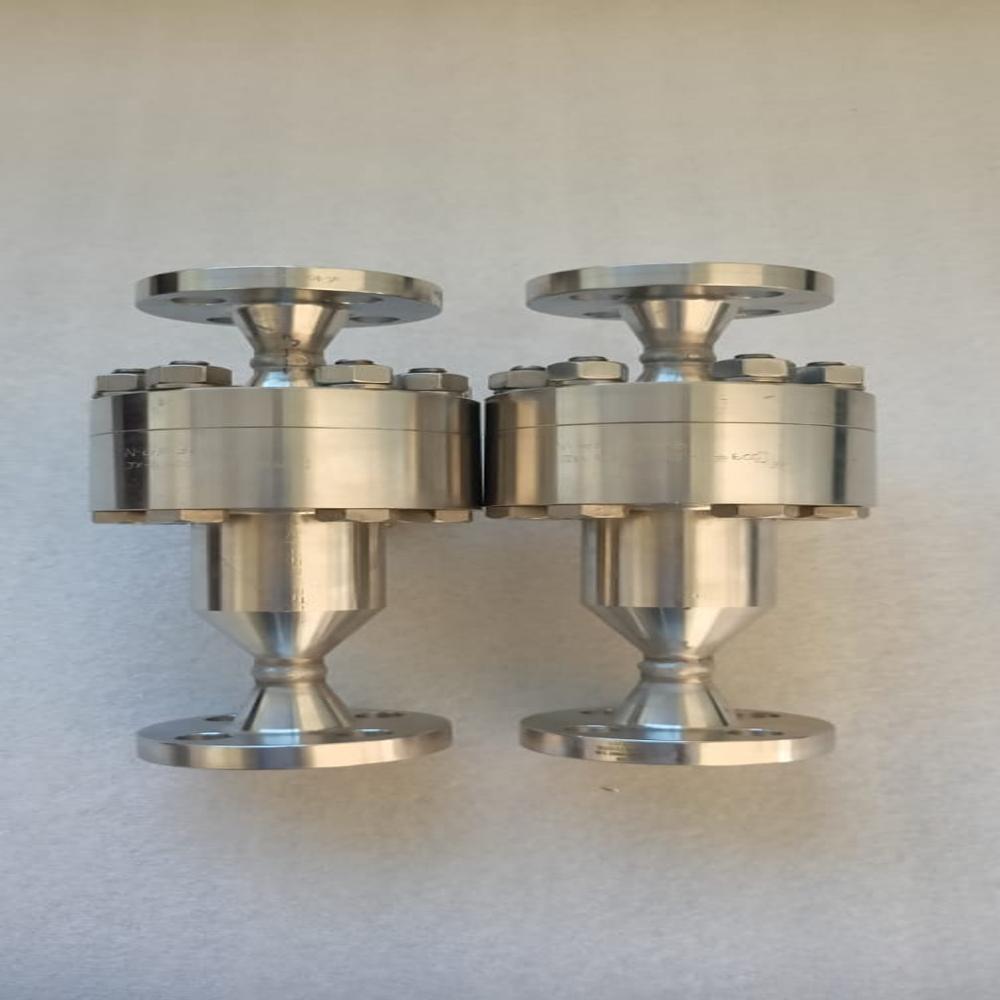

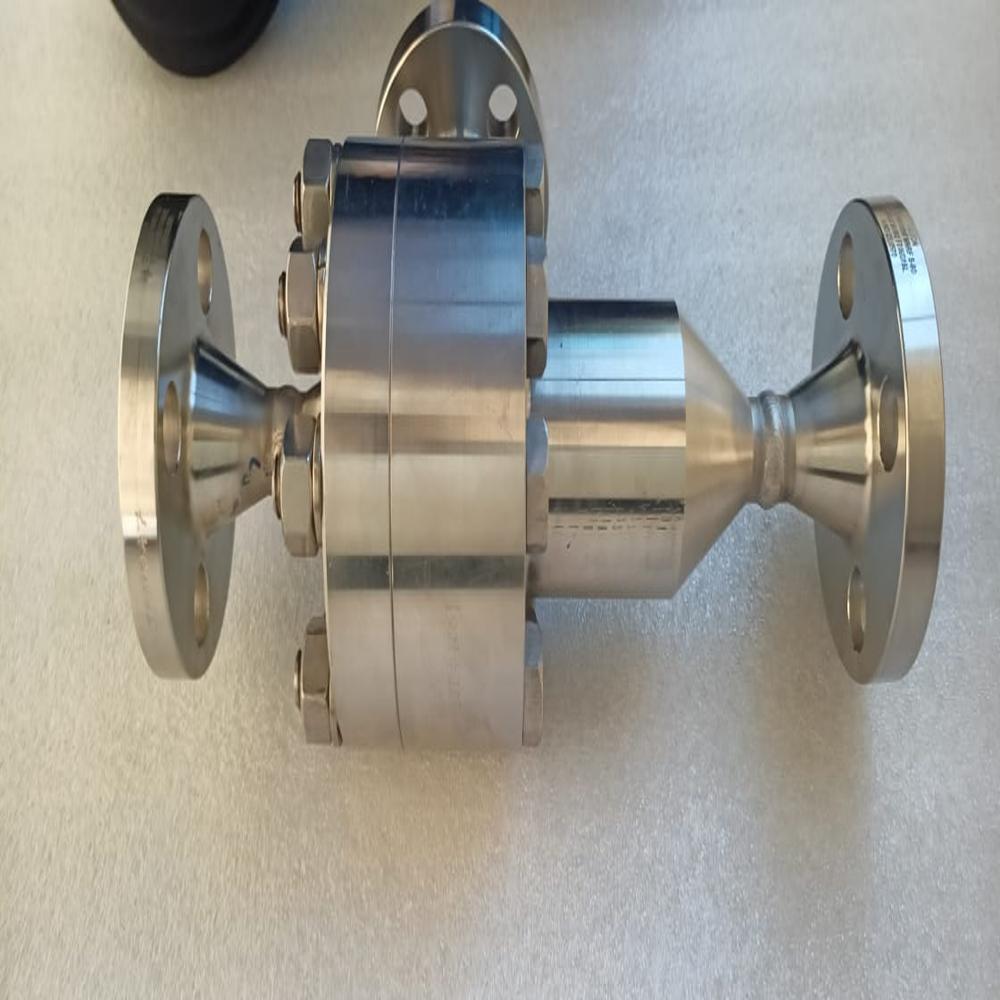

Cyclone Separators API Plan 32

Cyclone Separators API Plan 32 Specification

Finish
Smooth polished for corrosion resistance

Mounting Orientation
Vertical

Material of Construction
Stainless Steel (SS 304, SS 316, other alloys available)

Seal Compatibility
Designed for compatibility with various mechanical seal types

Inlet/Outlet Connections
Flanged / Screwed / Welded

Working Pressure
Up to 40 bar (580 psi)

Gasket Material
PTFE/Graphite/CNAF, as per application

Connection Size
1/2" to 2" (custom sizes on request)

Maintenance
Low, no moving parts

Operating Temperature Range
-20C to 180C

Flow Rate Capacity
Up to 20 m/hr

Particle Removal Efficiency
Up to 98% for particles 10 micron

Usage
Used in mechanical seal plans where high reliability is required

Customization
Available as per client specifications

Installation
Easy inline installation, compact design

Design Standard
API Plan 32

Application
Seal flushing, removal of solid particles from process fluid

Cyclone Separators API Plan 32 Trade Information

Minimum Order Quantity
75 Number

Payment Terms
Cash Against Delivery (CAD), Cash in Advance (CID)

Supply Ability
75 Per Month

Delivery Time
10 Days

Sample Available
No

Packaging Details
Wooden Box packages With VCI Cover Closing.

Main Export Market(s)
Asia

Main Domestic Market
All India

About Cyclone Separators API Plan 32

API Plan 32 is a method of supplying clean, external flush fluid to the seal chamber of a mechanical seal. This external fluid is typically maintained at a higher pressure than the stuffing box pressure, creating a barrier that prevents process fluid leakage. A cyclone separator can be integrated into Plan 32 to pre-filter the external flush fluid, removing larger particles before it reaches the seal chamber.

Exceptional Particle Removal for Reliable Seal Protection

The Cyclone Separators API Plan 32 delivers industry-leading performance in removing solid particles from process fluids-achieving up to 98% efficiency for particles equal to or greater than 10 microns. This precision in filtration supports long-term mechanical seal health, leading to reduced wear and maintenance expenses.

Versatile Compatibility and Customization

Tailored for a variety of mechanical seal types, this separator allows customization in construction material, gasket selection (PTFE, graphite, CNAF), connection type (flanged, screwed, or welded), and sizing. These customizable features cater to distinct client requirements and challenging operational conditions.

Durable Construction and Easy Installation

Manufactured with high-grade stainless steel and a corrosion-resistant polished finish, the Cyclone Separators API Plan 32 ensures longevity in harsh environments. Its compact, vertical design and multiple inlet/outlet options enable hassle-free inline installation in both new and existing systems.

FAQ's of Cyclone Separators API Plan 32:

Q: How does the Cyclone Separators API Plan 32 function in a mechanical seal system?

A: The Cyclone Separators API Plan 32 operates by utilizing centrifugal force to separate and remove solid particles from the process fluid before it reaches the mechanical seal. This protects the seal from abrasion and extends its service life, ensuring continuous reliability.

Q: What is the recommended installation process for the Cyclone Separators API Plan 32?

A: Installation involves connecting the separator inline on the seal flush line, making sure the unit is mounted vertically for optimal efficiency. The compact design and various connection types (flanged, screwed, or welded) allow for straightforward integration into new or existing pipework.

Q: When should I consider customizing the Cyclone Separators API Plan 32?

A: Customization is beneficial when your application requires specific sizes, materials, gasket types, or connection options to meet unique operational parameters or compatibility with existing systems. The product can be tailored as per client specification to ensure optimal performance.

Q: Where is the Cyclone Separators API Plan 32 typically used?

A: This separator finds its primary application in mechanical seal flush plans across industries such as chemical processing, oil and gas, water treatment, and other systems where protecting seals from solid particles ensures equipment reliability and minimizes downtime.

Q: What are the maintenance requirements for the Cyclone Separators API Plan 32?

A: The separator features a low-maintenance design with no moving parts, significantly reducing upkeep needs. Periodic inspection of the separator and gasket material is recommended to ensure consistent particle removal and seal protection.

Q: How does using the Cyclone Separators API Plan 32 benefit mechanical seal performance?

A: It enhances mechanical seal longevity and reliability by efficiently removing abrasive particles from flush fluids, thus reducing the risk of seal damage, lowering maintenance costs, and improving overall system reliability.
